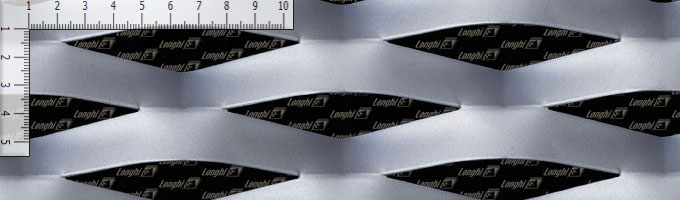

ACADEMY

Description	DL	DC	AV	SP	Open Area%	SpFin	Steel kg/m²	Aluminium kg/m²	PanelSizesFe	PanelSizesAl
R 115x40(48)-20x1.5	115	40	20	15	26	21	97	32	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1800 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1800 max
R 115x40(48)-20x2	115	40	20	2	26	21	12,8	4,2	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1800 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1800 max
R 115x40(48)-20x3	115	40	20	3	26	21	193	64	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1800 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1800 max

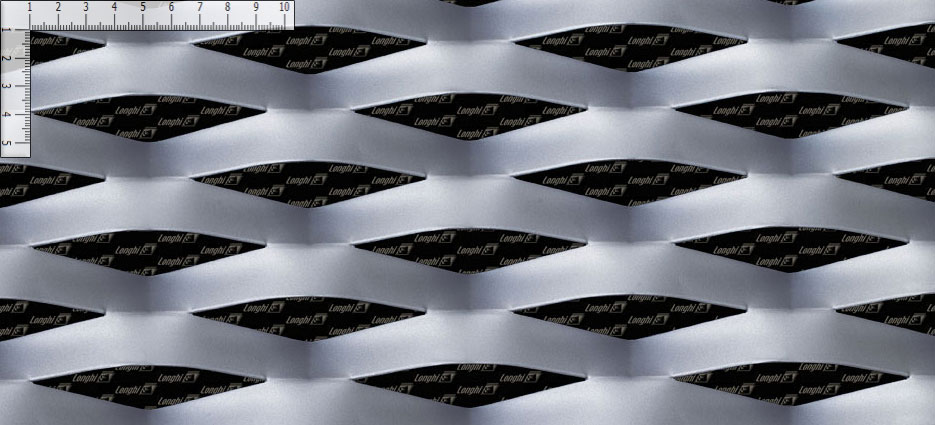

Back | Download | Mesh real effect | Legenda
