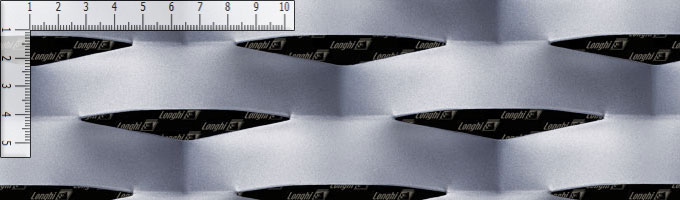

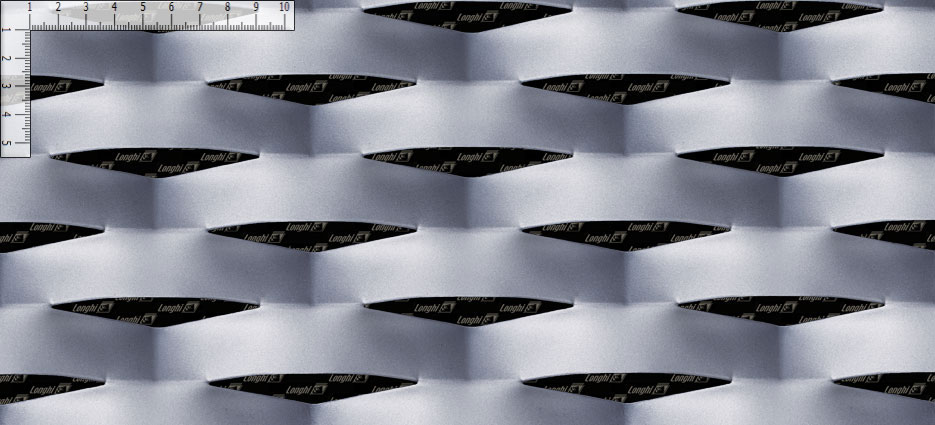

AMBASCIATA

Description	DL	DC	AV	SP	Open Area%	SpFin	Steel kg/m²	Aluminium kg/m²	PanelSizesFe	PanelSizesAl
R 110x40(52)-24x1,5	110	40	24	1,5	16	18	10,6	3,6	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max
R 110x40(52)-24x2	110	40	24	2	16	18	14,1	4,7	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max
R 110x40(52)-24x3	110	40	24	3	16	18	21,1	7	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max
