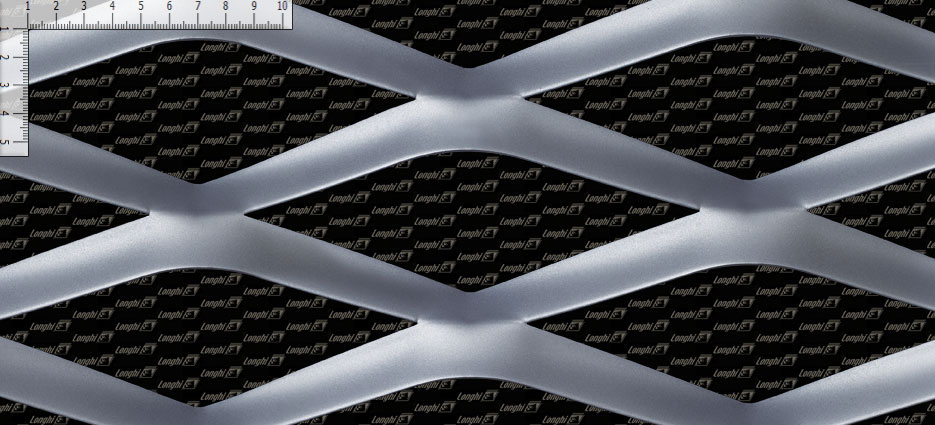

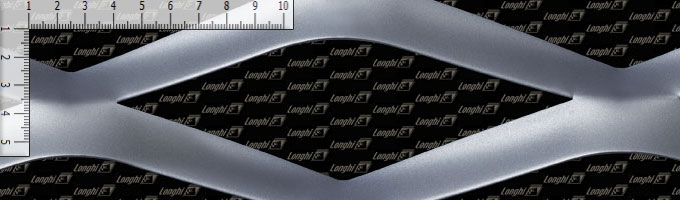

COLISEUM

Description	DL	DC	AV	SP	Open Area%	SpFin	Steel kg/m²	Aluminium kg/m²	PanelSizesFe	PanelSizesAl
R 200x75(80)-24x3	200	75	24	3	52,3	32	141	47	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2500 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2500 max
R 200x75(80)-24x1,5	200	75	24	1,5	52,3	32	7,1	2,4	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2500 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2500 max
R 200x75(80)-24x2	200	75	24	2	52,3	32	9,4	3,2	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2500 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2500 max

Back | Download | Mesh real effect | Legenda
