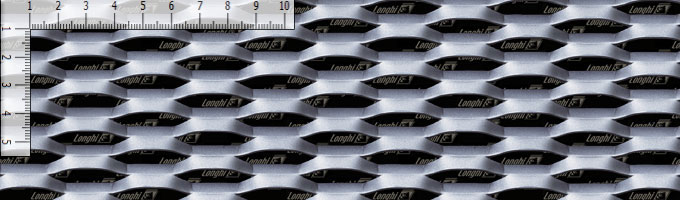

FILS 21

Description	DL	DC	AV	SP	Open Area%	SpFin	Steel kg/m²	Aluminium kg/m²	PanelSizesFe	PanelSizesAl
E 45x15(13,4)-5x1,5	45	15	5	1,5	33,3	7	8,8	4	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2000 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2000 max
E 45x15(13,4)-5x2	45	15	5	2	33,3	7	11,6	4	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2000 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2000 max
E 45x15(13,4)-5x3	45	15	5	3	33,3	7	17,5	6	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2000 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 2000 max

Back | Download | Mesh real effect | Legenda
