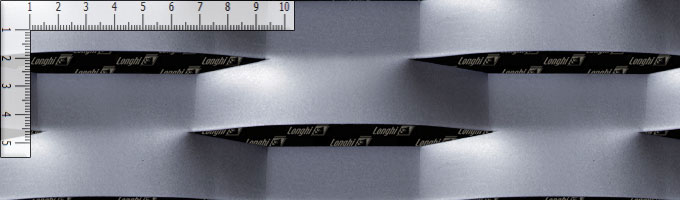

OMEGA

Description	DL	DC	AV	SP	Open Area%	SpFin	Steel kg/m²	Aluminium kg/m²	PanelSizesFe	PanelSizesAl
E 160x40(52)-24x1,5	160	40	24	1,5	15	16	10,8	3,6	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max
E 160x40(52)-24x2	160	40	24	2	15	16	14,4	4,8	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max
E 160x40(52)-24x3	160	40	24	3	15	16	21,6	7,2	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max	DL 1000-1250-1500xDC 3000 \| DL 2000-2500xDC 1600 max

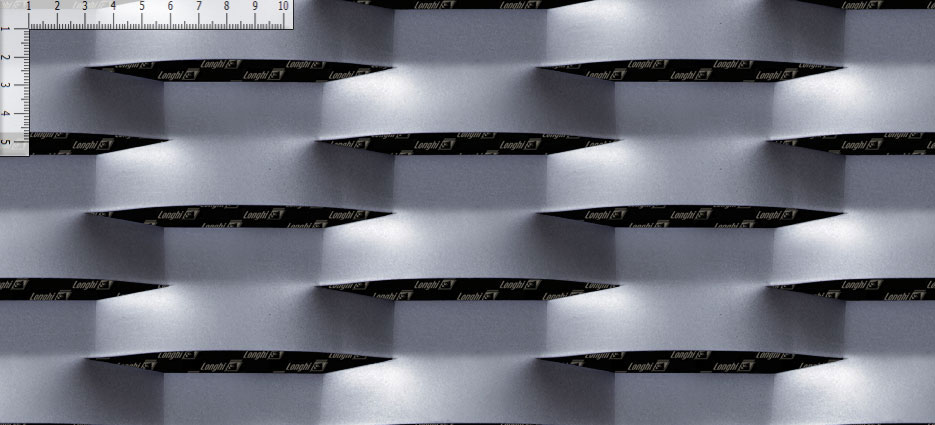

Back | Download | Mesh real effect | Legenda
